Product Specifications
| Model | Voltage | Power | Frequency | Noise Level | Clean Air Delivery Rate (CADR) | Max Static Pressure | Dimensions (L×W×H) | Weight |
| Unit |
V |
KW |
Hz |
dB |
m³/h |
Pa |
(L.W.H)mm |
kg |
|
PCA-720 |
3Φ220 3Φ380 |
0.75 |
50/60 |
85/86 |
1020 |
2255 |
637*520*1500 |
59 |

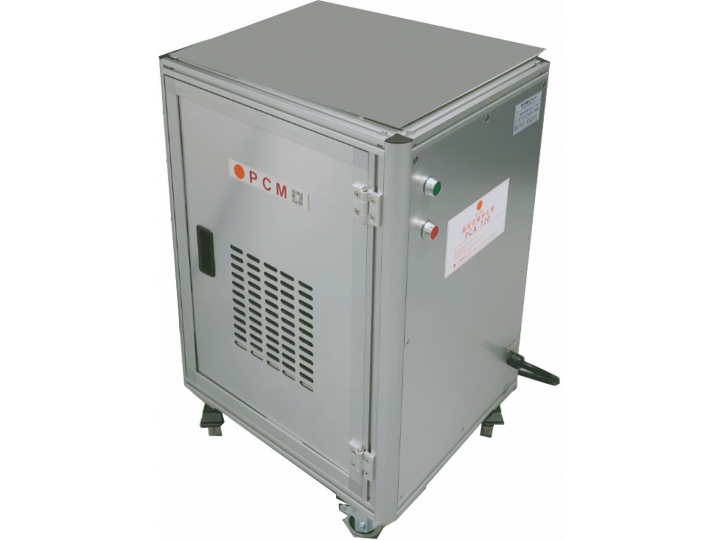

Product Features
●The main power unit is made from die-cast aluminum alloy, offering durability and structural strength.
●High-pressure and high-flow air output ensures stable airflow, excellent filtration performance, and wider circulation purification coverage.
●Equipped with a sensor-driven motor for energy efficiency and rapid heat dissipation—ideal for long-term operation.
●Fitted with caster wheels for easy and convenient mobility within the facility.
Filtration Performance Features
●Front-stage filter uses a reusable metal mesh, reducing maintenance burden and making upkeep easier.
●Built-in pressure gauge allows effective monitoring of blockage, helping determine optimal timing for filter maintenance or replacement.
●Patented top-down structural design extends the operational life of the high-efficiency air purifier.
●Equipped with high-performance activated carbon for effective removal of industrial odors.
Applicable Environments
Suitable for:
Air-conditioned factories, enclosed spaces, and general industrial facilities—specifically effective for issues such as industrial pollutants, factory mist, fine oil particles, PM2.5, smog, and unpleasant odors.
Coverage Capacity
●Maximum Treatment Area: 108 pings (approx. 357 m² or 3,840 ft²)
