LG-300SH - LL/MS

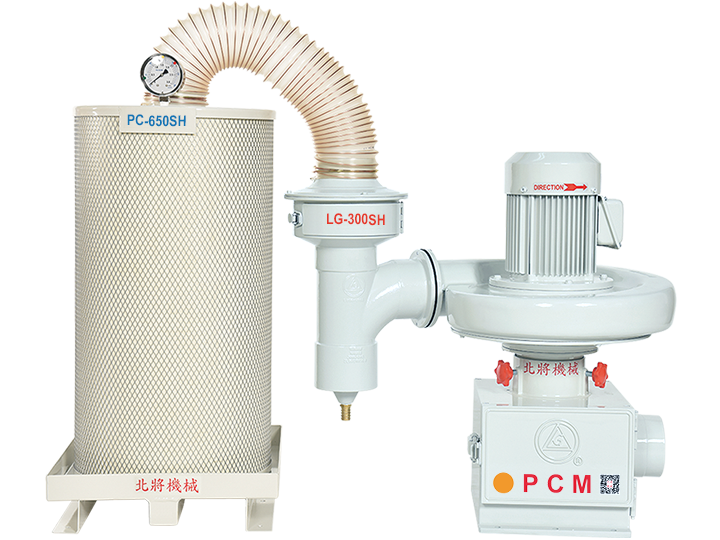

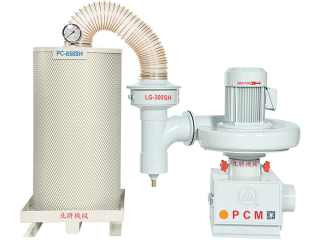

LG-300SH

SH Series IP54 Three-Phase – Filtration Efficiency >95%
Model Body Material Power Dimensions Weight Inlet Diameter Voltage Frequency Rated Current Noise Max Airflow Max Static Pressure Max Static Pressure
Unit 　 KW (L.W.H)mm kg mm V Hz A dB m3/min mmAq Pa
LG-300SH Aluminum Alloy 1.5 690×500×650 53 100 200~220 50 6.4 72 18 300 2942
60 5.4 80 22 320 3138
380~415 50 3.6 72 18 300 2942
60 3.1 80 22 320 3138

SH Series Long-Life Model – Product Features

  • Designed for Semi-Oil Cutting Fluids
    Equipped with HEPA filters specifically designed for water-based cutting fluids, effectively removing water mist and fine suspended particles.

  • High-Efficiency Toxic Air Purification
    Further filters residual mist from oil mist collectors and removes up to 60% of PM2.5 particles. When combined with the Two-Stage High-Pressure Oil Mist Collector, overall filtration efficiency reaches 95%.

Main Body Features

  • Aluminum Alloy Housing – Lightweight, durable, and corrosion-resistant.

  • High Static Pressure Design – Up to 320 mmAq, providing stable airflow and high filtration efficiency.

  • Induction Motor – Energy-saving, fast heat dissipation, suitable for long-term continuous operation.

  • Oil Mist Recovery by Structural Principle – Vertical design with aerodynamic blades ensures zero vibration and low noise, maintaining machining accuracy.

  • Easy Installation & Space-Saving – Flexible mounting options; no need for additional floor stands or brackets.

  • Quick Disposable Filter Replacement – Change filters in 10 seconds, maintenance-free, ensuring workplace safety.

Separate Oil Smoke Treatment Unit Features

  • Integrated Pressure Gauge – Easily monitor blockage and determine filter replacement time.

  • Patented Top-Down Design – High static pressure accelerates oil drainage from filters, extending service life.

  • Modular & Flexible Design – Can be mounted directly on machines or positioned elsewhere as needed.

  • Easy Maintenance – No cleaning required; filter replacement is quick and simple.

Applications

Suitable for:

  • CNC lathes

  • CNC milling machines

  • CNC multitasking machines

  • CNC grinders

  • EDM machines

  • Gear hobbing machines

  • Washing tanks

  • Anti-rust oil spray recovery

  • All types of equipment producing white smoke, fine oil mist, water mist, or oil mist.

  • Also applicable in air-conditioned factory environments.

Optional Accessories

  • Activated Carbon Filter AC-650

  • Side Mounting Bracket

  • Vertical Four-Leg Stand

  • Parallel Four-Leg Stand
