LG-300S - E/MS

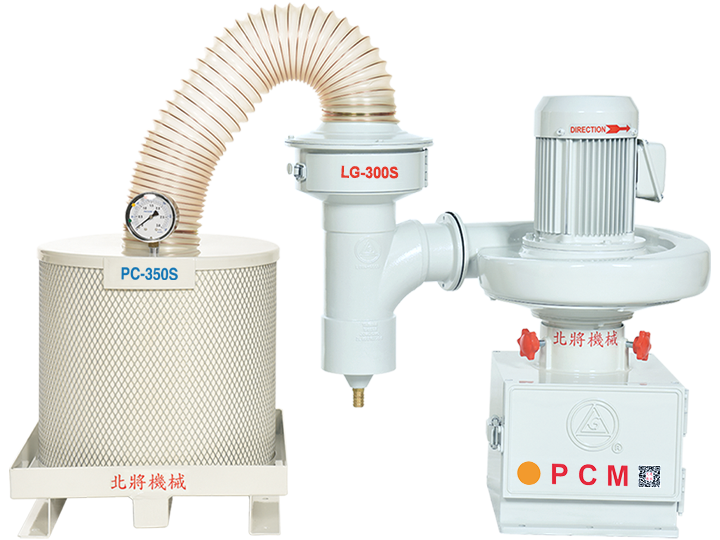

LG-300S

S Series IP54 Three-Phase – Filtration Efficiency >95%
Model Body Material Power Dimensions Weight Inlet Diameter Voltage Frequency Rated Current Noise Max Airflow Max Static Pressure Max Static Pressure
Unit 　 KW (L.W.H)mm kg mm V Hz A dB m3/min mmAq Pa
LG-300S Aluminum Alloy 1.5 690×500×620 50 100 200~220 50 6.4 72 18 300 2942
60 5.4 80 22 320 3138
380~415 50 3.6 72 18 300 2942
60 3.1 80 22 320 3138

S Series Economic Model – Product Features

● Specifically for Semi-Oil Cutting Fluids
Equipped with HEPA filter designed for water-based cutting fluids, effectively filtering mist and suspended particles.

● High-Efficiency Purification of Harmful Substances
Further filters residual air from the oil mist collector, removing PM2.5 and up to 60% of fine particulates. Combined with the Two-Stage High-Pressure Oil Mist Collector, overall filtration efficiency reaches 95%.

Oil Mist Collector Body Features

  • Aluminum Alloy Construction: Lightweight, strong, and durable.

  • High Static Pressure: Maximum 320 mmAq ensures stable airflow and high filtration efficiency.

  • Energy-Saving Motor: Induction motor for low power consumption, fast heat dissipation, and continuous operation.

  • Low Noise & No Vibration: Vertical design with aerodynamic blade structure for stable performance.

  • Easy Installation & Space-Saving: Can be mounted directly on machines without extra floor space.

  • Quick Disposable Filter Replacement: Change filters in 10 seconds, simple maintenance, and safe operation.

Separate Oil Smoke Treatment Unit Features

  • Equipped with Pressure Gauge: Easily detect blockages and determine filter replacement timing.

  • Patented Structure Design: Top-down design with high static pressure accelerates oil mist drainage, extending filter life.

  • Flexible Modular Design: Install on top of machines or any desired position.

  • Multi-Functional Combination: Can be used independently or integrated with any air delivery system.

  • Maintenance-Free & Easy Replacement: No filter maintenance required; quick and easy replacement process.

Applications

Suitable for:

  • CNC lathes

  • CNC milling machines

  • CNC multitasking machines

  • CNC grinders

  • EDM machines

  • Gear hobbing machines

  • Washing tanks

  • Anti-rust oil spray recovery

  • All types of equipment producing white smoke, fine oil mist, water mist, or oil mist.

  • Also applicable in air-conditioned factory environments.

Optional Accessories

  • Activated Carbon Filter AC-350

  • Side Mounting Bracket

  • Vertical Four-Leg Stand

  • Parallel Four-Leg Stand
