Remove Toxic Fumes, Protect Employee Health, Create a Comfortable Environment, and Improve Work Efficiency
Do you know how much toxic air you inhale every day?
For standard industrial CNC machines using cutting oil or water-based coolant, heating during machining causes vaporization, producing water mist and oil fumes. These may contain lead or polychlorinated biphenyls (PCBs), which can easily create toxic fumes.
We recommend installing a Two-Stage High-Pressure Oil Mist Collector to prevent oil mist from spreading throughout the work environment for extended periods, protecting personnel from exposure to contaminated ai
Features of the Two-Stage High-Pressure Oil Mist Collector
-
The oil mist collector is constructed from aluminum alloy, and the impeller is also made of aluminum alloy. If metal chips or foreign objects enter, they are quickly thrown away from the rotation center without damaging the housing, making it more durable than conventional sheet-metal products.
-
Equipped with an IP54 F-class induction mo, suitable for 24-hour continuous operation in production facilities.
Features of the Standalone Oil Smoke Treatment Unit
-
Top-down design principle: High static pressure accelerates the downward flow of oil mist collected on the filter, significantly extending its lifespan.
-
Comes with a standard pressure gauge for easy detection of clogging and determining the filter replacement time.
-
Available in various specifications to meet the requirements of different machining processes on-site.
High Static Pressure
The oil mist collector uses high static pressure to efficiently and quickly recover oil mist from enclosed spaces.
No Vibration & Low Noise – Does Not Affect Machine Operation
The motor of the oil mist collector is vertically mounted, minimizing vibration. The horizontal impeller design, combined with aerodynamic principles, eliminates upward vibration forces, ensuring the host machine’s machining accuracy remains unaffected.
Easy Installation & Space-Saving

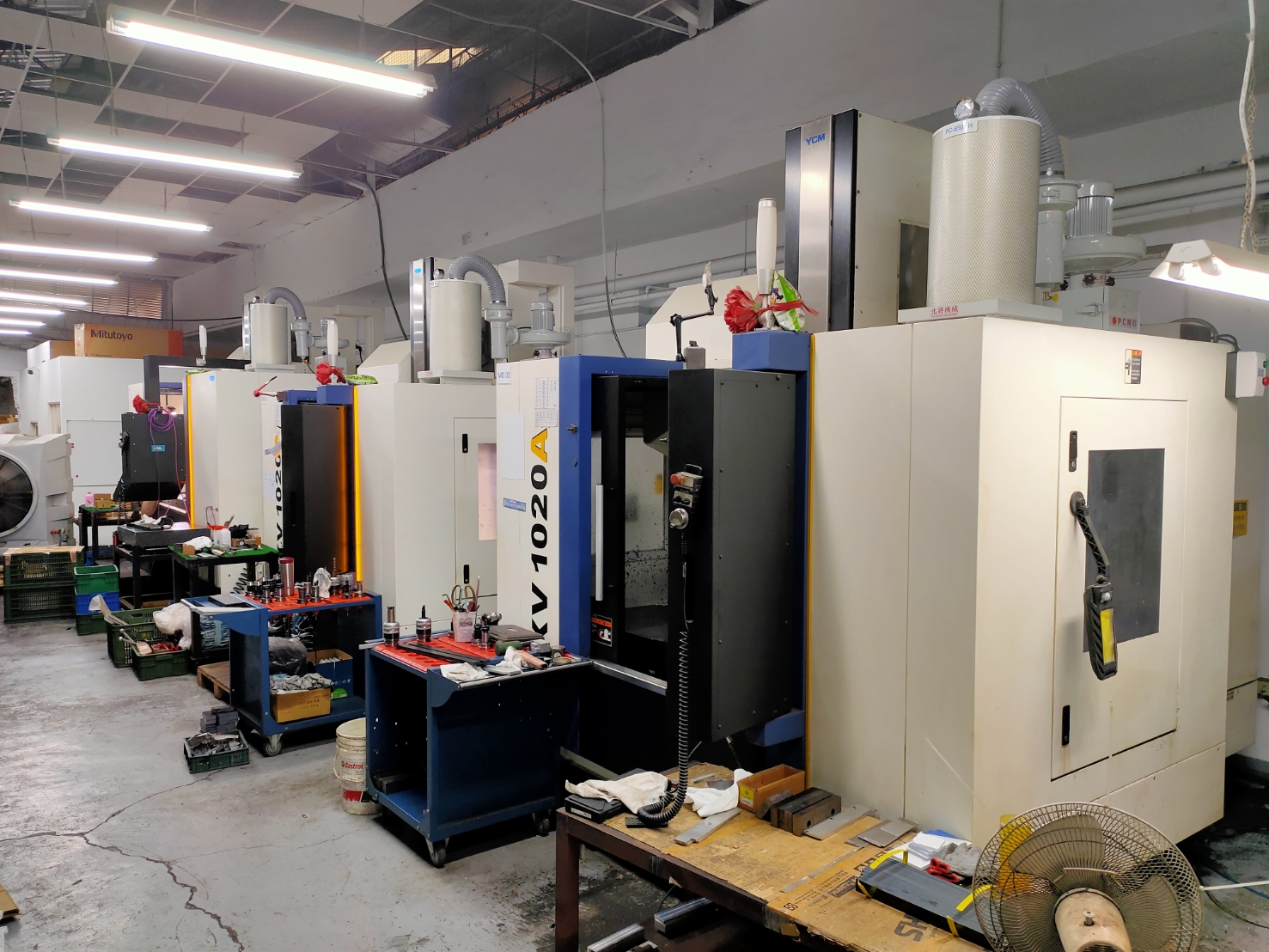

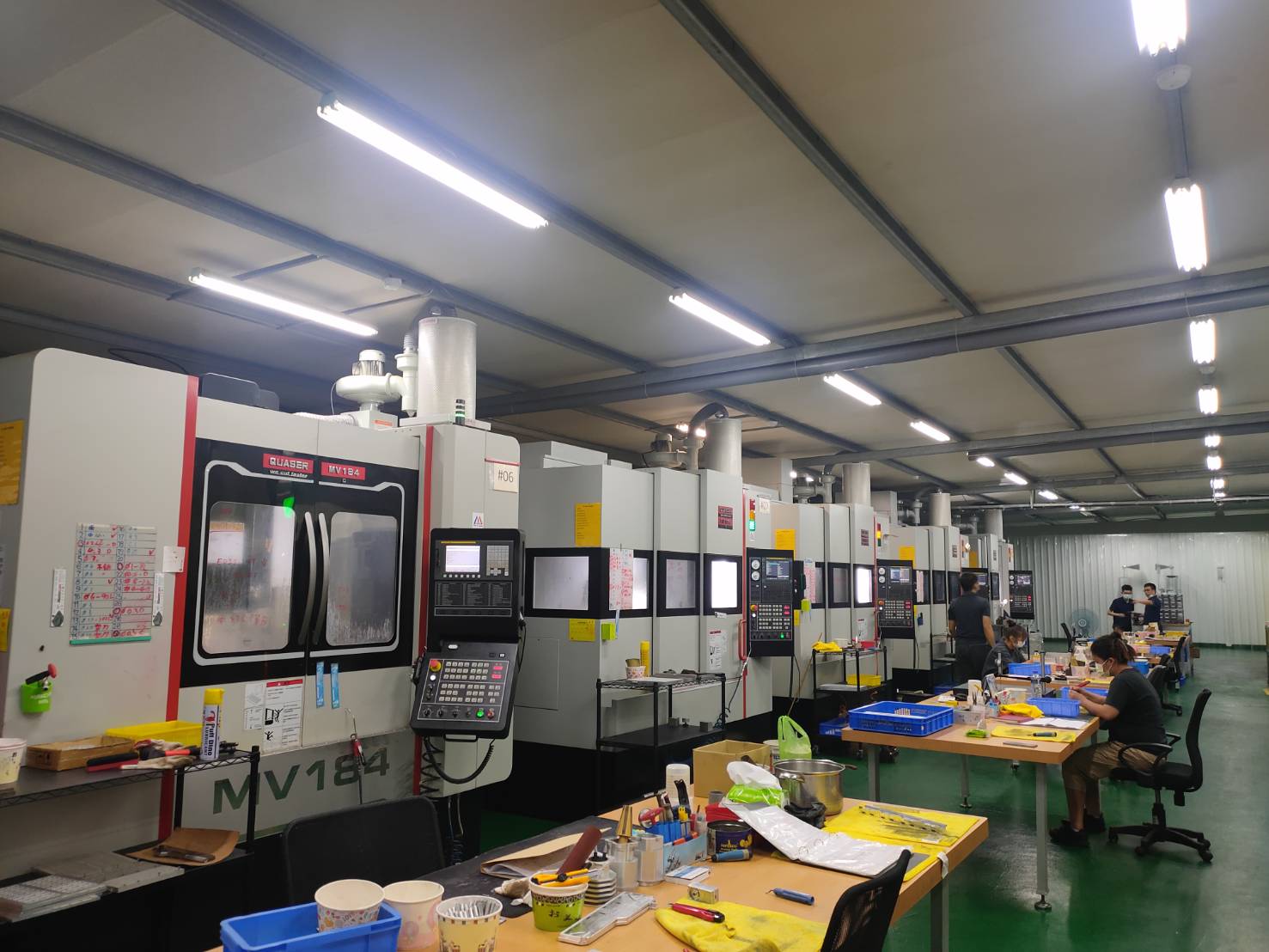

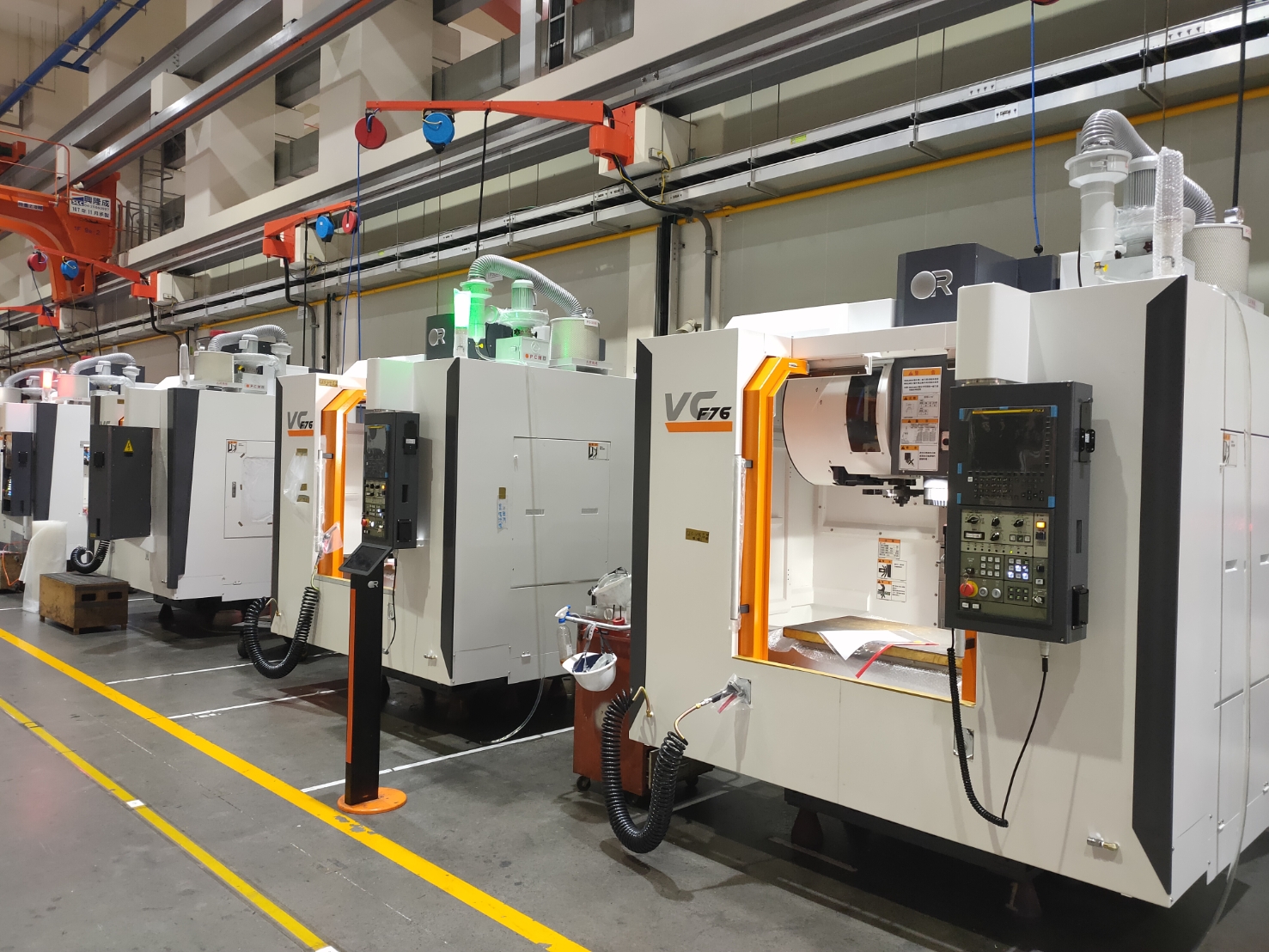

Flexible installation without complicated components. The main unit can rotate 360°, providing greater flexibility in space utilization. It can be installed directly on top of machine tools, eliminating the need for floor-mounted frames or columns, saving space, and simplifying machine relocation and layout planning.
High Filtration Efficiency – Quick Disposable Filter Replacement, Easy Maintenance
The oil mist collector uses a two-stage filtration design:
-
First Stage: Pre-filter captures most cutting dust, metal chips, and oil mist.
-
Second Stage: Secondary filter removes remaining mist. Oil adhering to the inner wall further improves filtration efficiency.
The recovered cutting oil returns to the machine’s oil tank through the return port for recycling.
When operators open the machine door to load/unload workpieces, they avoid inhaling sticky, smelly, and toxic oil mist. The economical disposable filter can be replaced in 10 seconds, restoring original airflow performance, meeting the need for quick and simple maintenance.
Professional Service & Guaranteed Quality
Pei Chiang Machinery (PCM) sincerely thanks the industry for 25 years of trust and support.
We specialize in oil mist, oil smoke, and oil vapor treatment and provide professional on-site installation services.
Applications
This unit is suitable for:
-

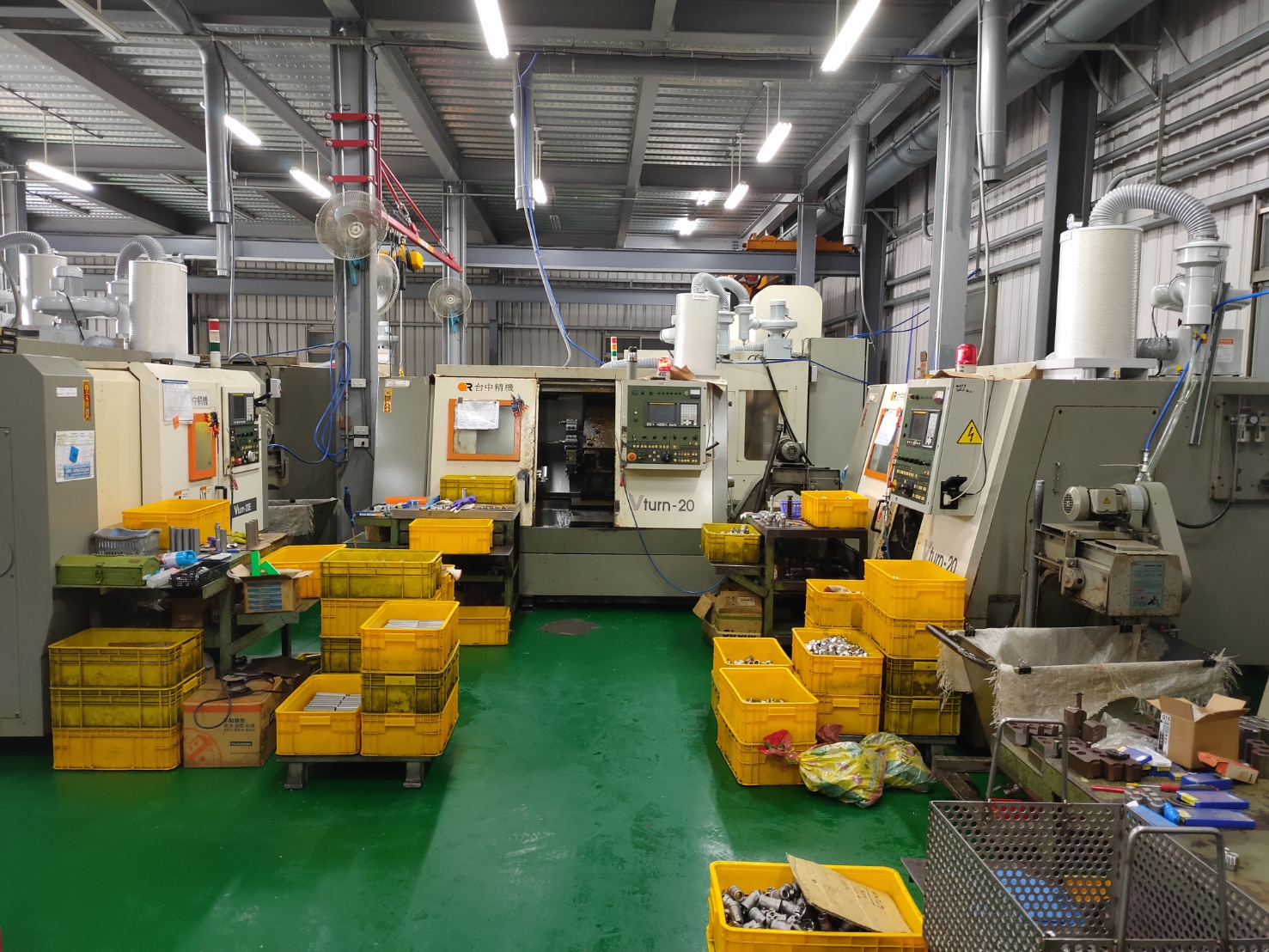

CNC lathes
-
CNC machining centers
-
Gear hobbing machines
-
Grinding machines
-
Cleaning tanks
-
Anti-rust oil spraying operations
-
Any enclosed equipment generating oil mist, oil smoke, oil vapor, or water mist for oil mist recovery and treatment.
