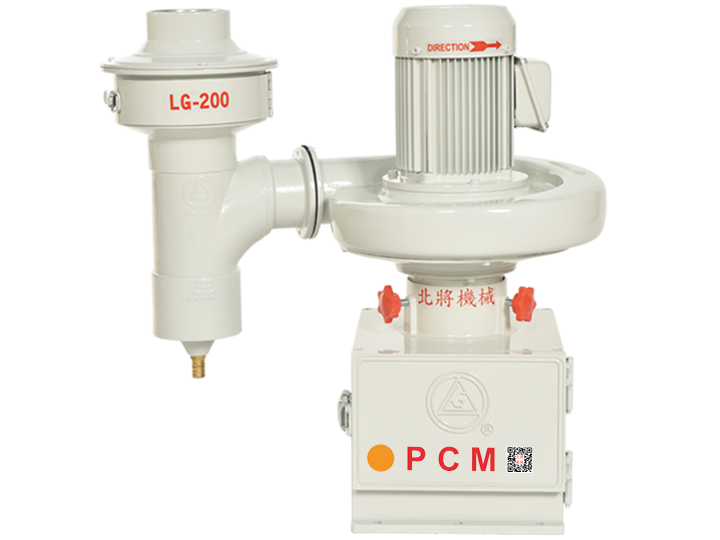

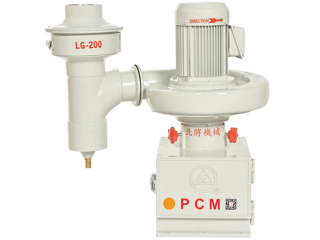

| PCM-LG Series IP54 Three-Phase – Filtration Efficiency >85% | ||||||||||||
| Model | Body Material | Power | Dimensions | Weight | Inlet Diameter | Voltage | Frequency | Rated Current | Noise | Max Airflow | Max Static Pressure | Max Static Pressure |
| Unit | KW | (L.W.H)mm | kg | mm | V | Hz | A | dB | m3/min | mmAq | Pa | |
| PCM-LG-200 | Aluminum Alloy | 0.37 | 570×400×580 | 29 | 100 | 200~220 | 50 | 2 | 50 | 7 | 130 | 1274 |
| 60 | 1.5 | 56 | 9 | 150 | 1471 | |||||||
| 380~415 | 50 | 1.3 | 50 | 7 | 130 | 1274 | ||||||
| 60 | 0.9 | 56 | 9 | 150 | 1471 | |||||||
PCM-LG Series – Key Features
-
Aluminum Alloy Housing: Lightweight yet robust and durable.
-
High Static Pressure: Powerful airflow up to 320 mmAq, ensuring stable flow and excellent filtration efficiency.
-
Energy-Efficient Induction Motor: Low power consumption, fast heat dissipation, suitable for continuous 24-hour operation.
-
Oil Mist Recovery Structure: Vertical design with minimal vibration and low noise.
-
Easy Installation: Compact design, saving floor space and allowing flexible machine layout.
-
Quick-Change Disposable Filters: Filters can be replaced within 10 seconds, ensuring easy maintenance and enhanced workplace safety.
Applications
Suitable for:
-
CNC lathes
-
CNC milling machines
-
CNC multitasking machines
-
CNC grinders
-
EDM machines
-
Gear hobbing machines
-
Washing tanks
-
Anti-rust oil spray recovery
-
All types of equipment producing white smoke, fine oil mist, water mist, or oil mist.
Optional Accessories:
-
S-Series Oil Smoke Separator Kit (for semi-oil cutting fluids)
-
M-Series Oil Smoke Separator Kit (for fully oil-based cutting fluids)
-
Mist Collector Net
-
Residual Gas Collection Pipe
-
Side-Mount Bracket
-
Steel Column
-
Four-Leg Stand
